vCAC 6 Custom Properties – Build Profiles – Property Dictionary

vCloud Automation Center offer a lot of extensibility features built in within the product that help you achieve your desired result while minimizing the amount of coding required. vCAC Custom Properties, Build Profiles, Property Dictionary is just an example of how you can customize the product to meet your needs while minimizing coding as well customize the input form to meet your need. As Property Dictionary seems to be the most missed/mis-understood feature of vCAC followed by Build Profiles and Custom Properties, I have decided to put a post together trying to simplify the explanation of these great features as much as possible. As well, I will be pointing you out to more resources at the end of the article to learn more in depth of each of these features.

vCAC Custom Properties:

As Custom Properties is the building block for Build Profiles and Property Dictionary, it will be very hard to explain any of the later without covering Custom Properties. As per VMware documentation, the way they define custom properties is as follow:

“VMware vCloud Automation Center™ custom properties allow you to add attributes of the machines your site provisions, or to override their standard attributes.”

What that is trying to say, vCloud Automation Center utilize particular variables (Custom Properties) that contain values that vCAC uses during machine provisioning (Ex: machine name, machine IP Address, Port Group to use, & so on). vCAC expose this to you as a Custom Properties that you can query or edit to over write these default values by a specific value or by a user input. This is a very powerful tool, as you can shape out the request form to ask the user for input (not required by the default request form) and execute upon it without requiring you to do any coding. Further, the product allow you to create your own custom properties to use with your own custom workflows.

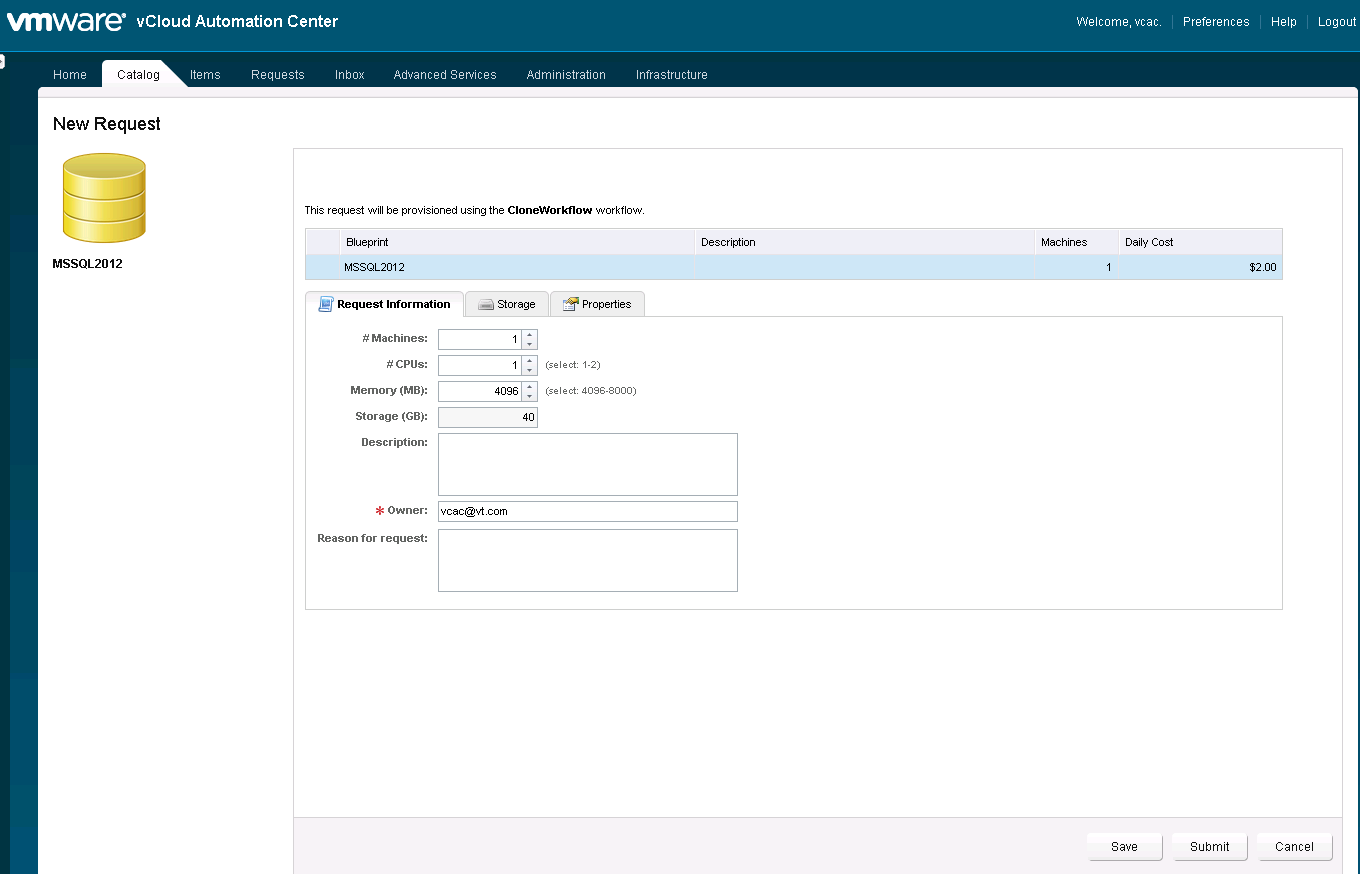

Let’s look at a quick example of using vCAC Custom Properties. Let’s first look at the default Blueprint/VM request form in vCAC Shown in the screen capture below:

vCAC Default Blueprint request form

As you can see in the above screenshot the default VM request form does not ask the user for a machine hostname or IP Address. What if you wanted to allow the user to choose their VMs hostname or IP Address. You can do that using custom properties and you can get your request form to look as below:

vCloud AUtomation Center 6 Custom Properties

As you can see in the above screenshot, I have used the Hostname & VirtualMachine.NetworkN.Address custom properties to allow the user to provide the desired VM hostname and IP Address that vCAC will use when creating the VM. The way I have done that is by going to Infrastructure ==> Blueprint ==> Properties , then add the two custom properties as showing in the below screenshot.

vCAC  6 Custom Hostname custom property

While the above is using existing vCAC Custom Properties that get used while vCAC is deploying a VM, you always can create your own custom ones that you can pass to your own workflow or just to track information within the request. For a list of custom properties available in vCAC 6, you can check: vCloud Automation Center 6 Custom Property Reference.

vCAC Build Profiles:

Build Profiles is nothing, but a collection of the custom property under single title. Imagine if you have 20 different custom properties that you need to include with every Windows Blueprint. It would not be nice to be able to just bundle them all in a build profile then go to these blueprints and assign a single Build profile instead of assigning 20 different custom properties to every Windows blueprint saving you labor and  provide a better consistency. You can create a build profile by going to Infrastructure => Blueprints => Build Profiles => New Build Profile, then you just add the desired custom properties to that build profile as shown in the below screenshot.

Creating vCAC Build Profile

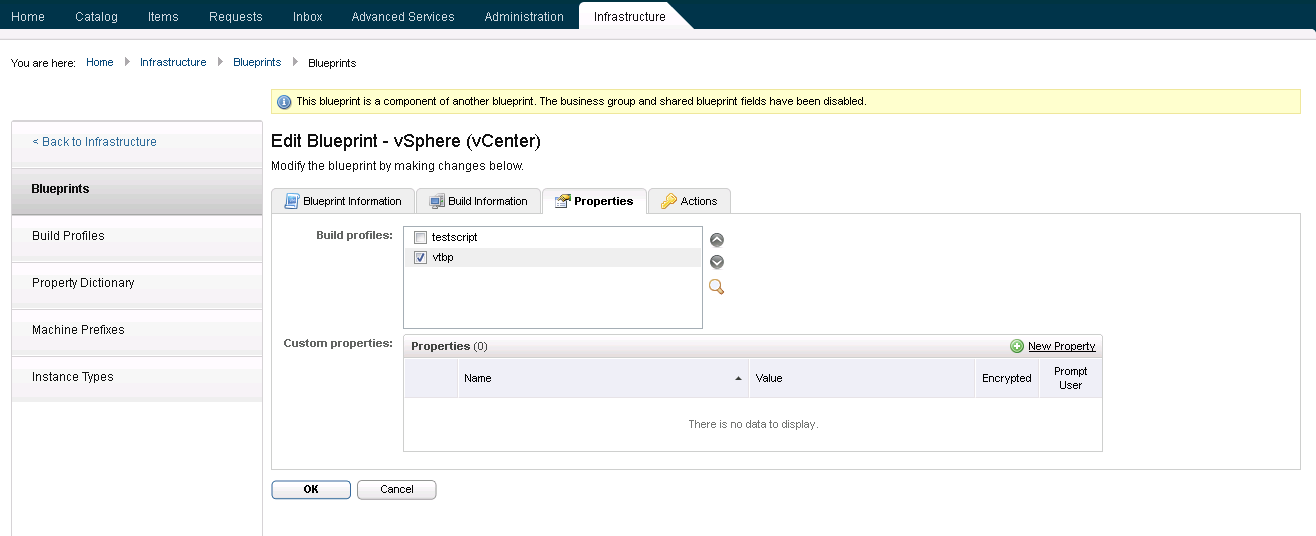

Next step is to add that build profile to your blueprint as per the below screenshot

vCAC  6 enable build profile on blueprint

Using this build profile will result in exactly same result as if you have added the custom properties to the blueprint individually.

 vCAC Property Dictionary

I am not sure why Property Dictionary seems to be the most misunderstood or missed feature of vCAC although its quite simple to use and add unleash a lot of power. Allowing users to provide values to custom properties using text boxes as we have shown in previous examples in this article is quite useful, but most of the time you want to limit the user choices using drop down menus, check boxes or so on. Property Dictionary is all about enabling you to do just that.

vCAC Property Dictionary enables you to define characteristics of custom properties to tailor their display in the user interface. You can customize property display in the user interface, as in the following examples:

  • Associate a property name with a user control, such as a check box or drop-down menu.
  • Specify constraints such as minimum and maximum values or validation against a regular expression.
  • Provide descriptive display names for properties or add label text.
  • Group sets of property controls together and specify the order in which they appear.
  • Create a relationship between different controls, where for example a location drop down menu can update the storage and network drop down menus to show only values that is valid for that location.

To see how useful property dictionaries can be, let’s take an example where we want to create the drop down menus as illustrated in the below diagram:

vCAC Property Dictionary drop down menus example

The goal of this exercise is to create three drop down menus that will ask the user for location, storage path, and network path to use. Let’s ignore the relationship between the different drop down menus for now and try to focus on just creating these drop down menus. To create the property dictionary required to create these drop down menu, you will need to go to:  Infrastructure => Blueprints => Property Dictionary.

Then for each drop down menu you want to create repeat the below steps, for this example I will do the location drop down menu:

  1. Click New Property Definition, then fill the information as shown in the below screenshot.  Please note the Name must match the Custom Property Name you want to use.
  2.  vcac location property definition
  3. Save your property definition by clicking the green check mark
  4. Hit Edit under Property Attributes
  5. Hit New Property Attributes, then fill the Property Attributes as shown in the below screenshot
  6. vCAC Property Dictionary drop down menu property attribute
  7. Repeat the above steps for storage and network as showing in the below screen shots
  8. Property Dictionary Property Definitions
  9. vCAC Property Dictionary Network Property Attribute

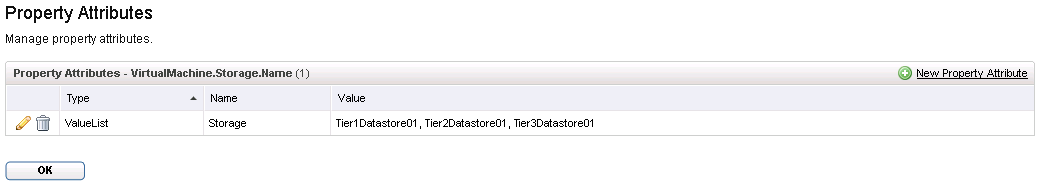

  10. vCAC Property Dictionary Storage Property Attribute
  11. Now that you have all the required property definitions and property attributed created, let’s create a property layout, which is basically away of organizing how these drop boxes will be ordered when shown to the user. In my case I wanted the drop boxes to be ordered as follow: Location, Storage, Network.  To do this I had to hit new property layout and fill the information as shown in the below screenshot:
  12. Creating New Property dictionary layout mylayout
  13. Now hit edit under the property instances under property layout and organize your property instances as shown in the below screenshot
  14. vCAC Property Dictionary organize property instances
  15. Let’s create a build profile that include all the custom properties involved in our property dictionary example as shown in the below screenshot
  16. Property Dictionary example Build profile
  17. Now all you left with is adding this build profile to your blueprint as shown below
  18. vcac adding property dictionary build profile to blueprint
  19. Now let’s check how the input of our blueprint look like:
  20. vCAC Property Dictionary in action

Notice in the above example the three drop down menus that was created for Location, Storage, & Network is operating independently of each other and there is no relationship between them. In other word, choosing a particular location does not filter which options you have for storage or network. The capability of doing such filtration is property dictionary relationship which I am covering in the following two posts:

vCAC 6.x Property Dictionary Relationship

vCAC 6.x Property Dictionary Relationship Builder

Comments

  1. Ankit Mehrotra says

    Hi Eiad,

    In the above sample is there a way to disable the owner tab? it is the limitation i face as only the person the team who deployed the VM can see/ edit in his portal unlike in VCD where you can delegate access to other users.

    Thanks,
    Ankit Mehrotra

  2. Hi Ankit,

    If you are a business group manager or support then you can see all the VMs within your group by using the drop down menu at the top right.

    Hope that help,
    Eiad

  3. Stan White says

    Is there a way to designate a value for a custom property to be the default value in the form. For instance in step 19 you have to hit the drop down to pick one of the three items… if most of the time I wanted the first item to be chosen and thus the default, is there a way to set it so that it auto populates into the form and you only have to pick the drop down if you want to change it to something other than the defaulted value?

  4. Hi Stan,

    To be honest, I am not sure if you can do that with the out of the box property dictionary but I know it can be achieved using the CCC kit, but that must be done with the involvement of VMware PSO.

    Thanks,
    Eiad

  5. Is it possible to have property relationship more than one? I have a requirement to consider two properties to get the third property. (Ex:- If Property A = X and Property B = Y , then Property C = Z )

  6. You can actually do that by having a grand parent => Parnet => Child relationship.

  7. Any sample xml files? I am trying to restrict the custom spec for OS and division. If I select the Windows 2008R2 blueprint, it needs to list only 2008R2 custom spec meant for specific division. Appreciate your time.

  8. Eiad,

    I am trying to use a custom property (hidden/not prompt) from business group to build relationship with another property(prompt) from property dictionary, however its not passing the values. Same logic worked in vCAC5.x but not in vRA6.2.2. Is there any design change in passing the property values in vRA6? If I create both custom properties with prompt in property dictionary it works but I have to use properties from business group. Appreciate your help.

  9. Rams, as far I know that should work. The only thing that happen to my mind that there is certain properties that only work when configured in a particular construct.
